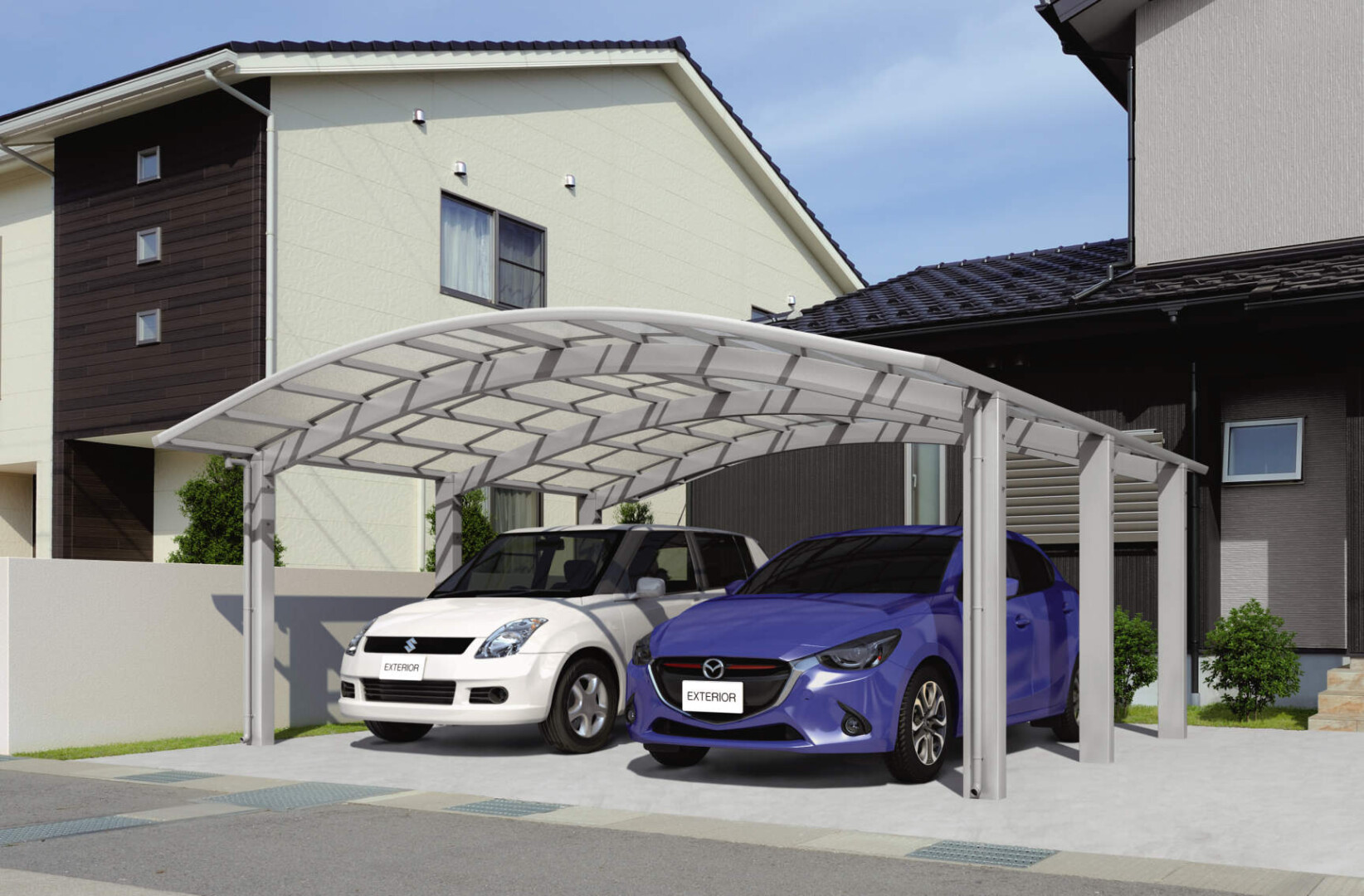

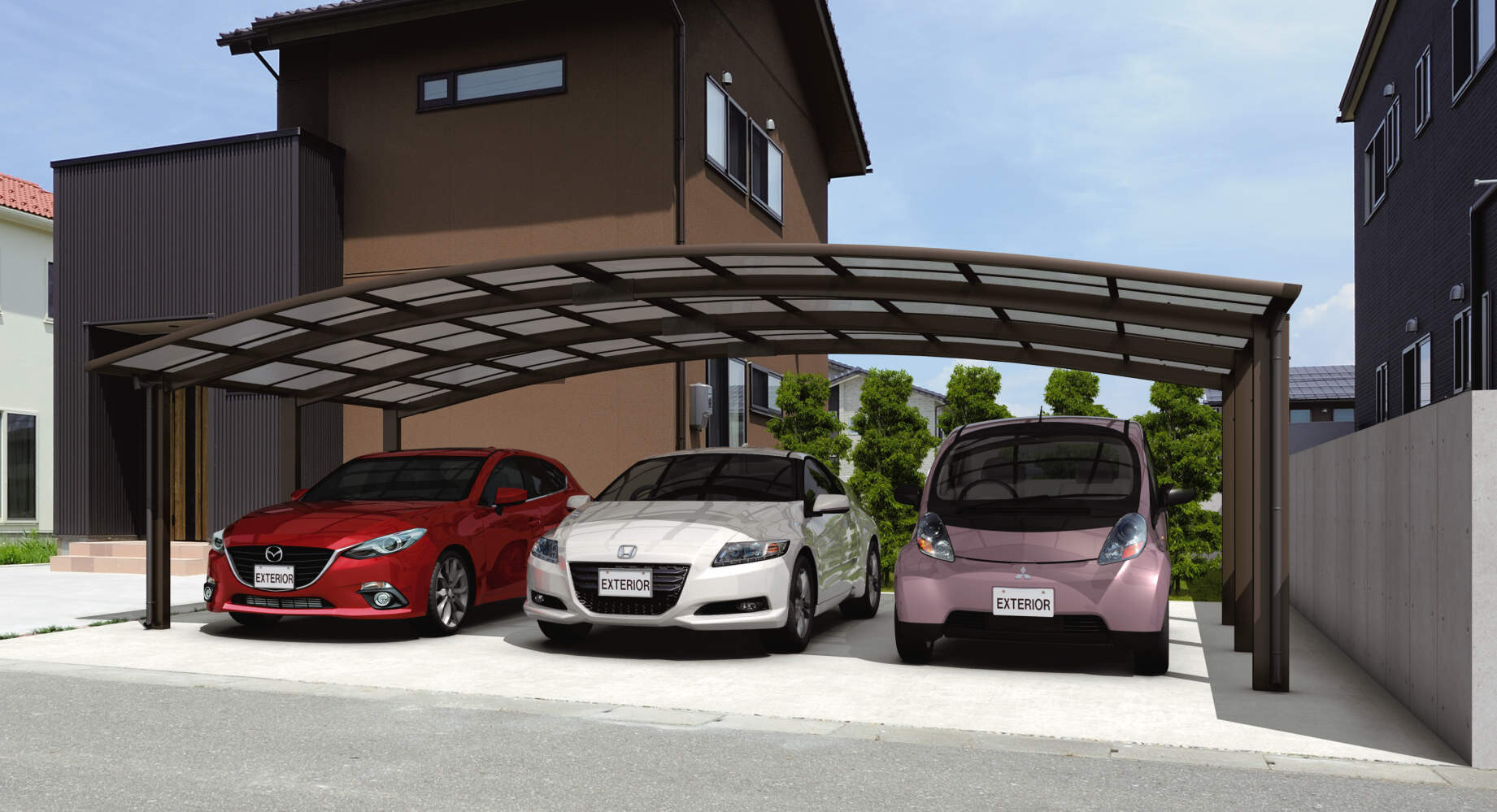

Multi-vehicle carports

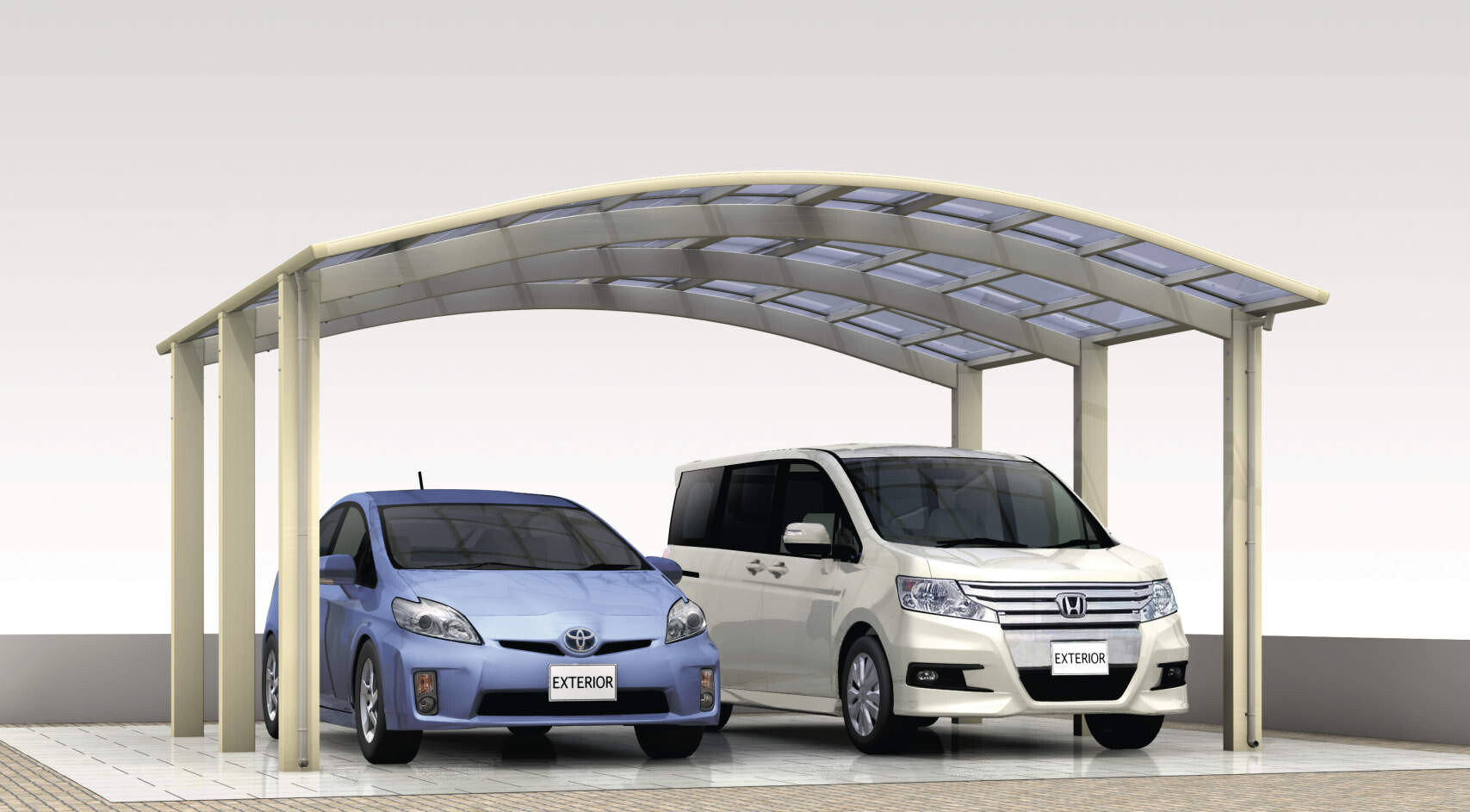

The structure consists of anodised aluminium sections and solid polycarbonate roofing.
Benefits
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - with increased resistance to heat transfer - 100% UV protection

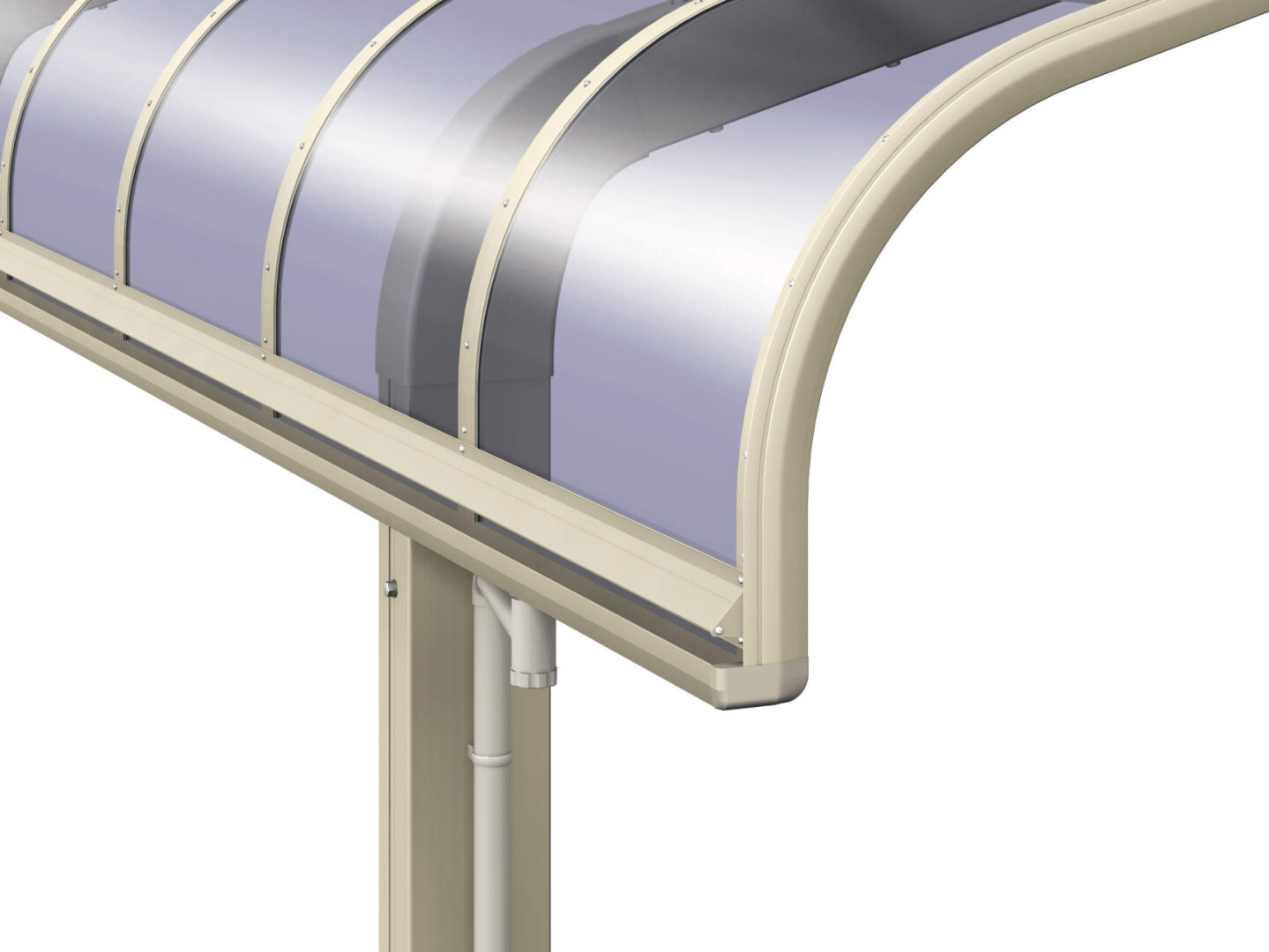

- Invisible drain - the drain is an integral part of the construction
Sizes
| Length | Width | Posts |
| *1020 cm | 240 cm, 250 cm, 270 cm, 300 cm | 4 |
| *1160 cm | 480 cm, 500 cm, 540 cm, 600 cm | 4 |
* for two vehicles
Benefits
| Snow load | Wind speeds |
| 60 kg/m2 | 137 km/h |
The carport is rated for the above loads. The resistance of the carport can be increased by using additional aluminium assembly supports (meant to be fitted only in case heavy snowfall is expected).
Colours
The most often chosen colour is UC (urban gray).

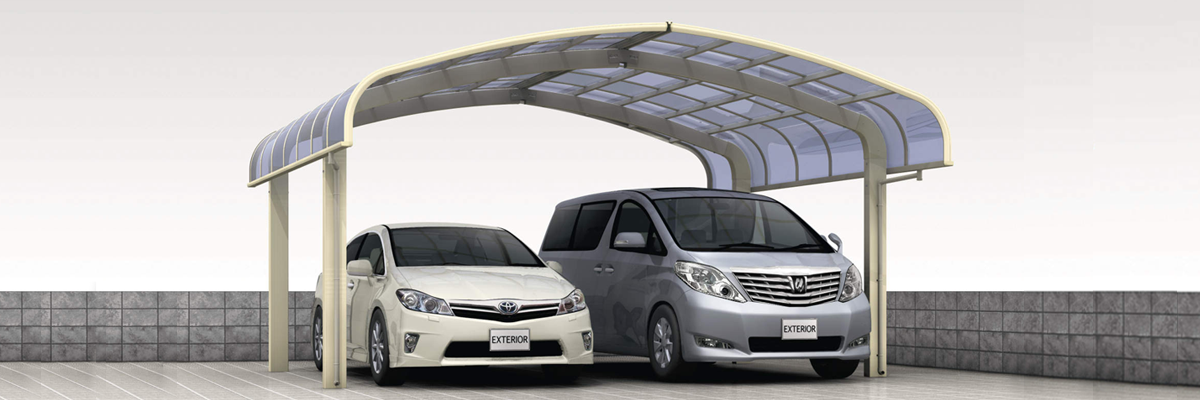

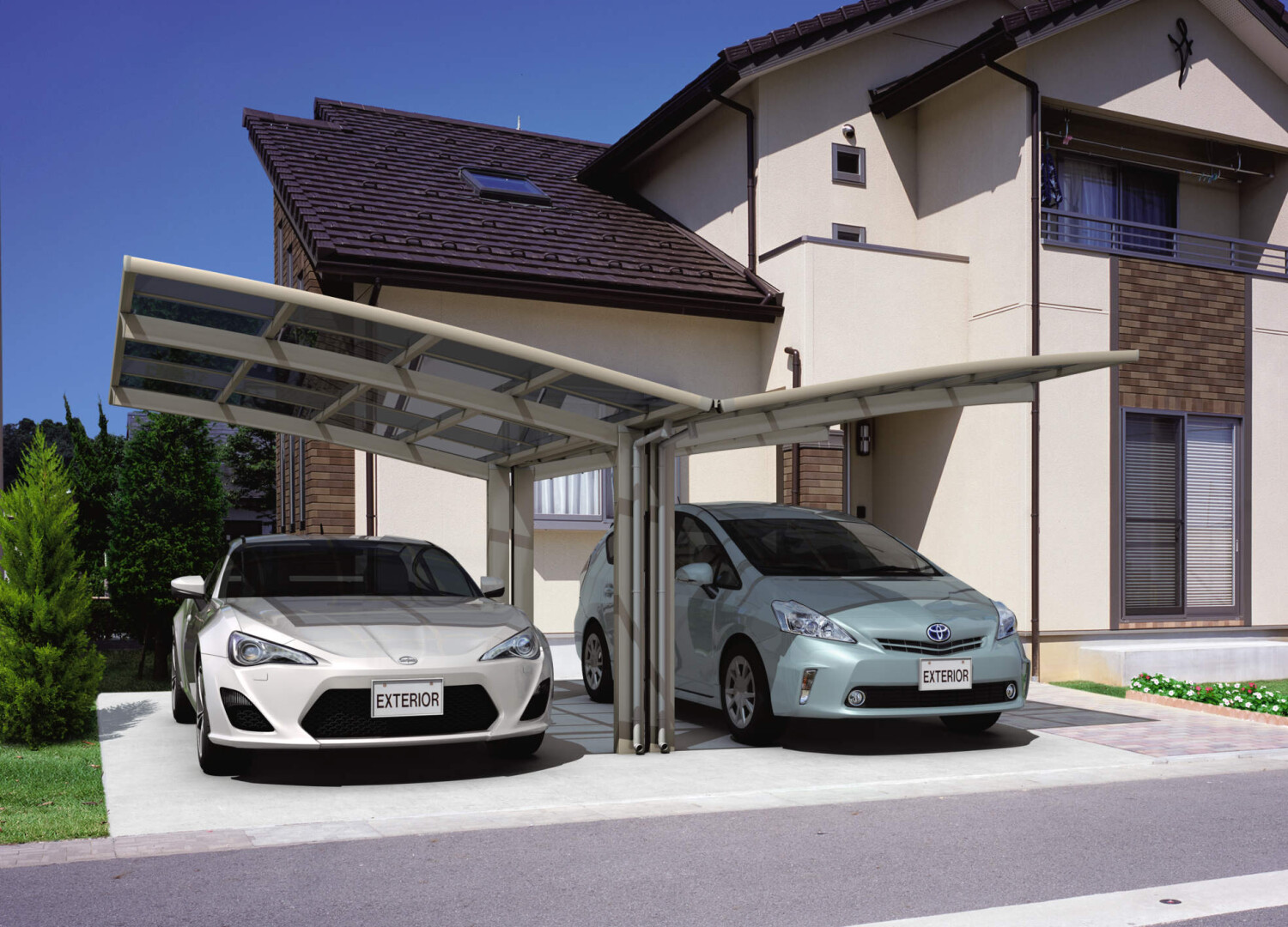

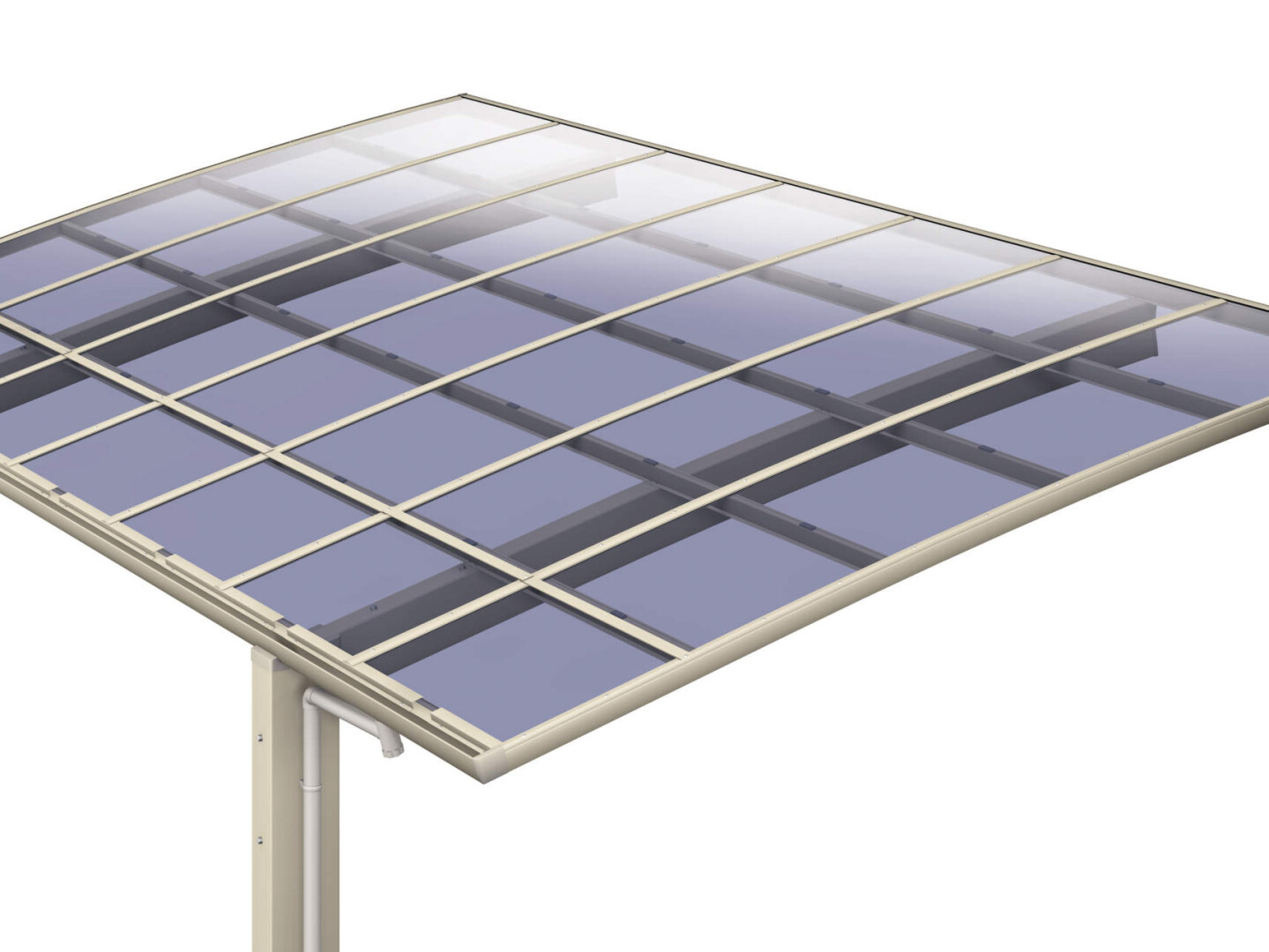

The structure consists of anodised aluminium sections and solid polycarbonate roofing. The KDR carport model features a slightly extended roof, offering protection from the weather also from the side. The carport is of modular design and can therefore be extended to accommodate 2, 3, 4 or more vehicles.
Benefits
- Posts only on one side of the structure - makes for easy parking
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - 100 UV protection, the car is not exposed to heat.
Sizes
| Length | Width | Posts |
| 1020 cm | *240 cm, 270 cm, 300 cm | 4 |
| *1160 cm | *480 cm, *270 cm, *300 cm | 4 |
* on request
Protection
| Snow load | Wind speeds |
| 60 kg/m2 | 137 km/h |
The carport is rated for the above loads. The resistance of the carport to weather can be increased by installing additional aluminium supports (meant to be fitted only in case heavy snowfall is expected).
Colours
The most often chosen colour is UC (urban gray).

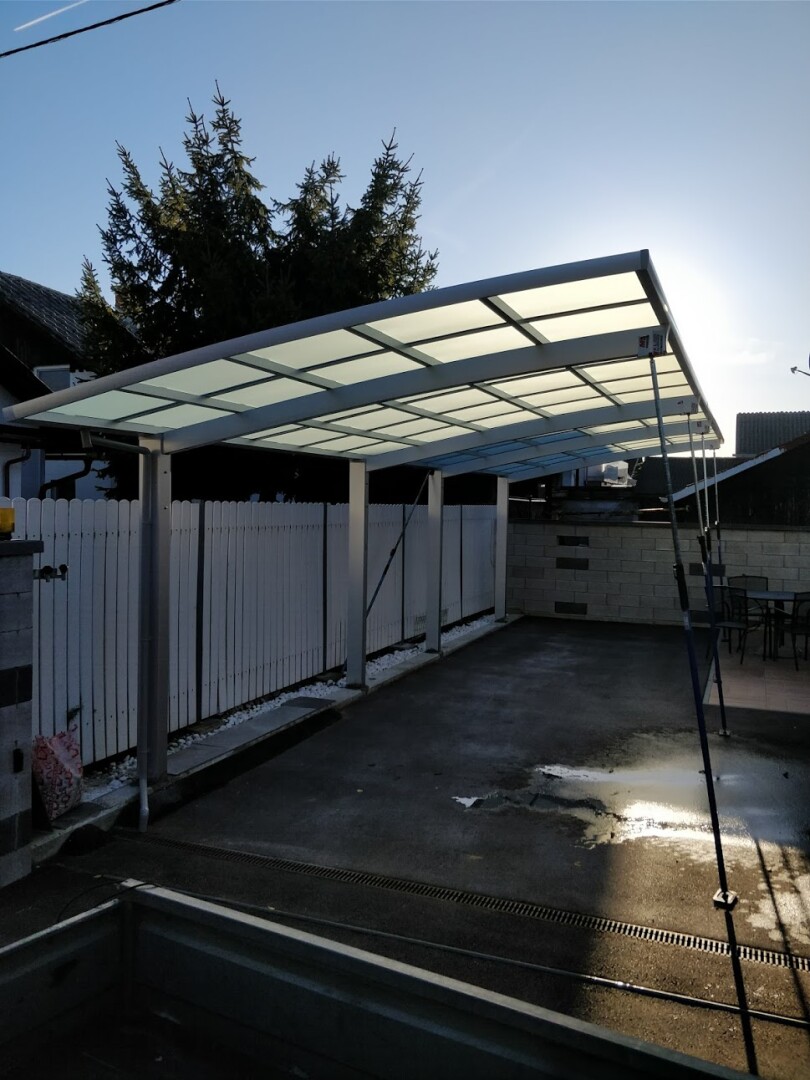

The structure consists of anodised aluminium sections and solid polycarbonate roofing. The KDRT carport model features a slightly extended roof, offering protection from the weather also from the side. The carport is of modular design and can therefore be extended to accommodate 2, 3, 4, 5 or more vehicles.
Benefits
- Posts only on one side of the structure - makes for easy parking
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - 100% UV protection, 50% IR protection, the car is not exposed to heat.
- Inox bolts
Sizes
| Length | Width | Posts |
| 1000 cm | *240 cm, 270 cm | 4 |
* on request
Protection
| Snow load | Wind speeds |
| 151 kg/m2 | 151 km/h |
The carport is rated for the above loads. The carport is suitable for heavy snow loads.
Colours
The most often chosen colour is (urban gray).
The structure consists of anodised aluminium sections and solid polycarbonate roofing.
Benefits
- Posts only on one side of the structure - makes for easy parking
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - with increased resistance to heat transfer - 100% UV protection
Sizes
| Length | Width | Posts |
| 1000 cm | *250 cm, 270 cm, 300 cm | 6 |
| 1120 cm | *250 cm, 270 cm, 300 cm | 6 |
* on request
The carport can be extended modularly along its length.
Protection
| Snow load | Wind speeds |
| 151 kg/m2 | 151 km/h |
The carport is suitable for heavy snow loads.
Colours
The most often chosen colour is (urban gray).

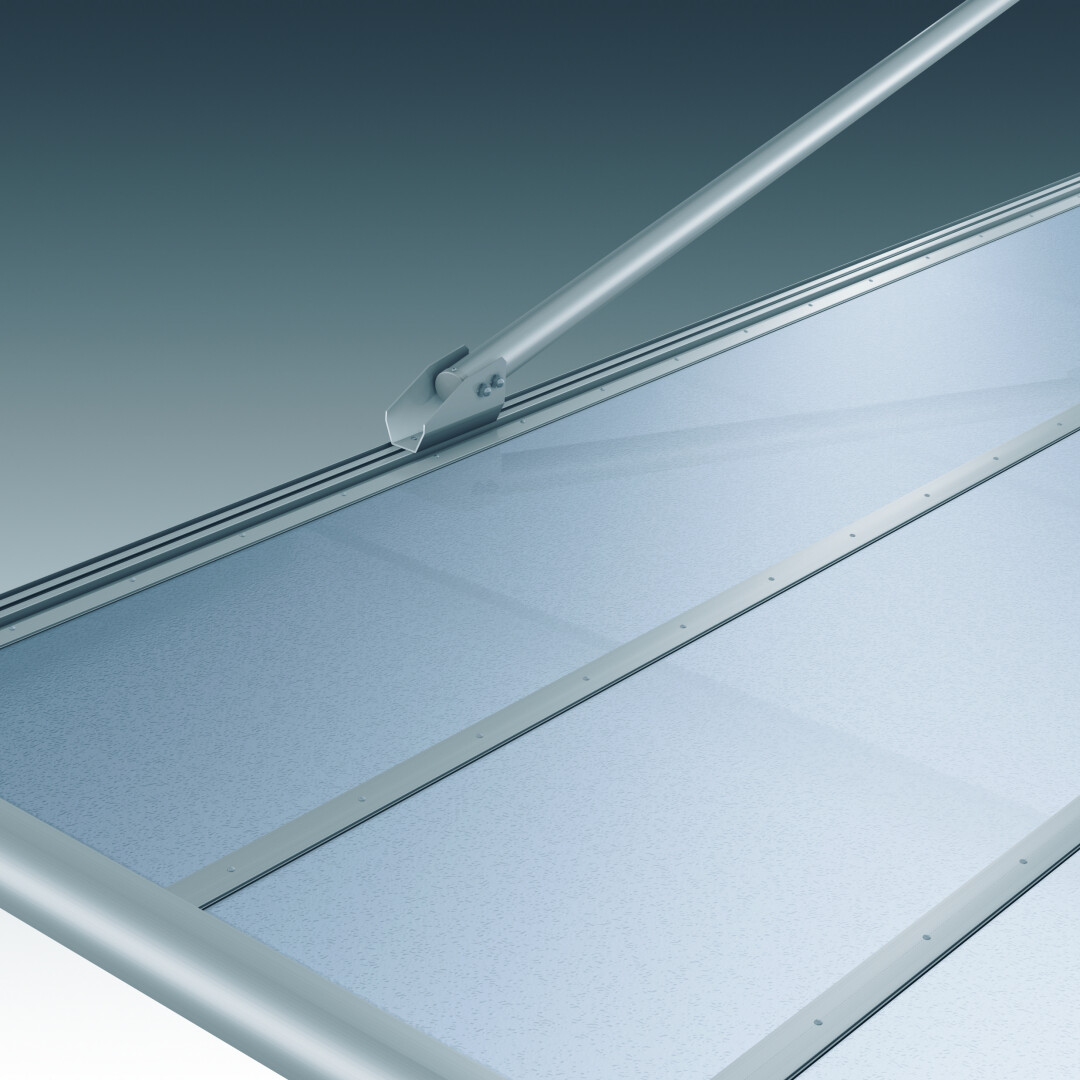

Roofing
The standard roofing of the KRBS aluminium carports is solid polycarbonate sheet. The most comonly used option is grey-blue opaque roofing due to its best heat retention properties (100% UV protection).

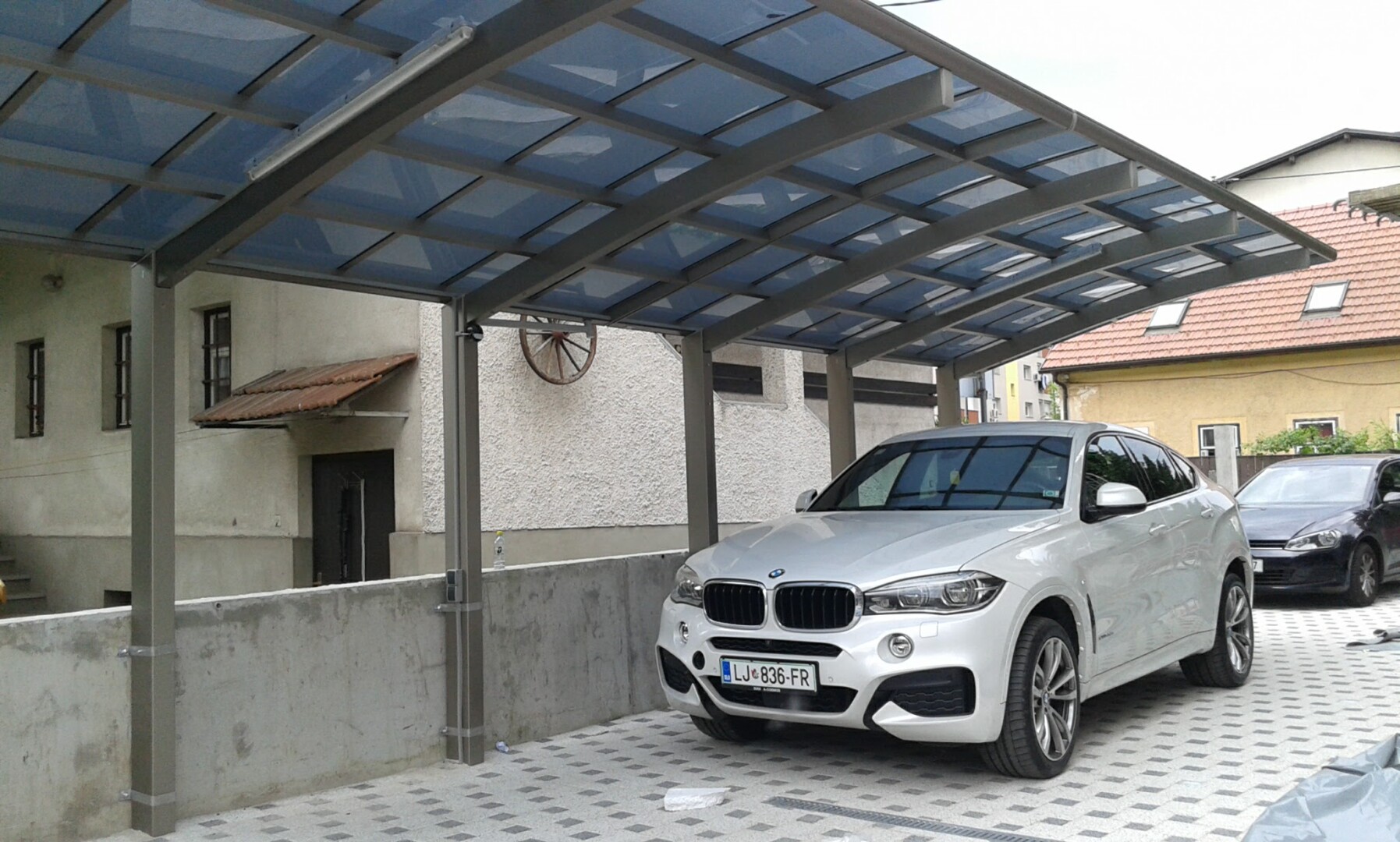

The carport is made of galvanised steel profiles and then painted in the colour of the customer's choice. The filling between the pillars is laser-cut using a design of your choice.
Benefits
- Cantilevered design facilitates parking/driving off
- Construction made of galvanised steel profiles, painted according to RAL scale.
- Multi-layer polycarbonate roof
- Bolted construction - no welding
- Superior design, build quality and strength
Standard sizes
| Length | Width | Posts |
| 540 cm | 540 cm | 2 |
* Carport size can be adapted to customer's desires upon request.
Protection
| Snow load | Wind speeds |
| 200 kg/m2 | 151 km/h |
The carport is suitable for heavy snow loads.
Colours
The carport can be painted in any RAL colour.
The structure consists of anodised aluminium sections and solid polycarbonate roofing. The gutter is an integral part of the carport's construction and is therefore practically invisible.
Benefits
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - with increased resistance to heat transfer - 100% UV protection
Sizes
| Length / depth | Width | Posts |
| 540 cm | 510 cm, 580 cm, 800 cm | 4 |
| 610 cm | 510 cm, 580 cm, 800 cm | 4 |
Protection
| Snow load | Wind speeds |
| 510 kg/m2 - 450 kg/m2 | 151 km/h |
The carport is rated for the above loads.
Colours
The most often chosen colour is (urban gray).
The structure consists entirely of anodised aluminium. The roofing may be of corrugated sheeting or corrugated sheeting in conjunction with solid polycarbonate roofing. The gutter is an integral part off the carport's construction and is therefore practically invisible.
Benefits
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - 100% UV protection, 50% IR protection, the car is not exposed to heat.
- Inox bolts
Standard sizes*
| Length / depth | Width | Posts |
| 540 cm | 510 cm, 580 cm, 800 cm | 4 |
| 610 cm | 510 cm, 580 cm, 800 cm | 4 |
* Non-standard dimensions are also possible upon request
Protection
| Snow load | Wind speeds |
| 151 kg/m2 | 151 km/h |
The carport is rated for the above loads.
Colours
The most often chosen colour is (urban gray).
The structure consists entirely of anodised aluminium. The roofing is corrugated metal.
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - 100% UV protection, 50% IR protection, the car is not exposed to heat.
- Inox bolt
Sizes
| Depth | Width | Posts |
| 550 cm | 550 cm, 610 cm, 800 cm | 6 |
| 600 cm | 550 cm, 610 cm, 800 cm |
6 |
* Non-standard dimensions are also possible upon request
Protection
| Snow load | Wind speeds |
| 300 kg/m2 | 151 km/h |
The carport is suitable for areas where extremely heavy snowfall can be expected.
Colours
The most often chosen colour is (urban gray).
The structure consists of anodised aluminium sections and solid polycarbonate roofing. The two types of carports can complement each other sideways, so that they are suitable for 3, 4, 5 or more vehicles.
Benefits
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - with increased resistance to heat transfer - 100% UV protection
- Drainage is part of the construction - and therefore practically invisible
Sizes
| Depth | Width | Posts |
| 510 cm | *480 cm, *500 cm, 540 cm, 600 cm | 4 |
| *580 cm | *480 cm, *500 cm, 540 cm, 600 cm |
4 |
* On request
Protection
| Snow load | Wind speeds |
| 60 kg/m2 | 137 km/h |
The carport is rated for the above loads. The resistance of the carport to weather can be increased by installing additional aluminium supports. (meant to be fitted only in case heavy snowfall is expected).
Colours
The most often chosen colour is (urban gray).
The structure consists of anodised aluminium sections and solid polycarbonate roofing. The KDR carport model features a slightly extended roof, offering protection from the weather also from the side. The carport is of modular design to extend sideways and can therefore be made to accommodate 2, 3, 4 or more vehicles.
Benefits
- Posts only on one side of the structure - makes for easy parking
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - 100 UV protection, the car is not exposed to heat.
Sizes
| Depth | Width | Posts |
| 510 cm | *240 cm, 270 cm, 300 cm | 4 |
| *580 cm | *240 cm, *270 cm, *300 cm |
4 |
* On request
Protection
| Snow load | Wind speeds |
| 60 kg/m2 | 137 km/h |
The carport is rated for the above loads. The resistance of the carport to weather can be increased by installing additional aluminium supports. (meant to be fitted only in case heavy snowfall is expected).
Colours
The most often chosen colour is UC (urban gray).
The structure consists of anodised aluminium sections and solid polycarbonate roofing. The KDRT carport model features a slightly extended roof, offering protection from the weather also from the side. The carport is of modular design to extend sideways and can therefore be made to accommodate 2, 3, 4, 5 or more vehicles.
Benefits
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - 100% UV protection, 50% IR protection, the car is not exposed to heat.
- Inox bolts
Sizes
| Depth | Width | Posts |
| 500 cm | *480 cm, 540 cm | 6 |
* On request
Protection
| Snow load | Wind speeds |
| 151 kg/m2 | 151 km/h |
The carport is rated for the above loads. The carport is suitable for heavy snow loads.
Colours
The most often chosen colour is (urban gray).
The carport construction consists of anodised aluminium sections and solid polycarbonate roofing.
Benefits
- Posts only on one side of the structure - makes for easy parking
- All-aluminium construction - no corrosion
- Anodised surface - no colour fading
- Bolted construction - no welding
- Solid polycarbonate sheet roofing - with increased resistance to heat transfer - 100% UV protection
Sizes
| Depth | Width | Posts |

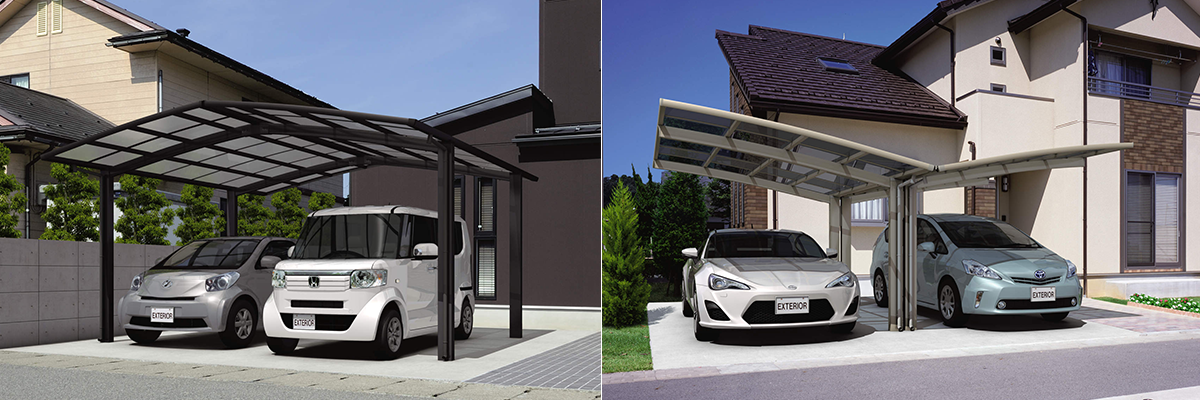

| 500 cm | *500 cm, 540 cm, 600 cm | 6 MC, 3 YC |
| *580 cm | *500 cm, 540 cm, 600 cm |
6 MC, 3 YC |
* On request
The carport can be extended modularly along its width.
Protection
| Snow load | Wind speeds |
| 151 kg/m2 | 151 km/h |
The carport is suitable for heavy snow loads.
Colours
The most often chosen colour is UC (urban gray).
Roofing
The standard roofing of the KRBS aluminium carports is solid polycarbonate sheet. The most comonly used option is grey-blue opaque roofing due to its best heat retention properties (100% UV protection).
